Laser Type

60 Watt CO2 Laser Up to 1/2" Cutting Depth

Workspace

500mm x 300mm

Safety Rating

The InkSmith Mako Laser Cutter has a Class 1 safety rating, making it safe for schools, homes and offices.

Product details

Description



Description

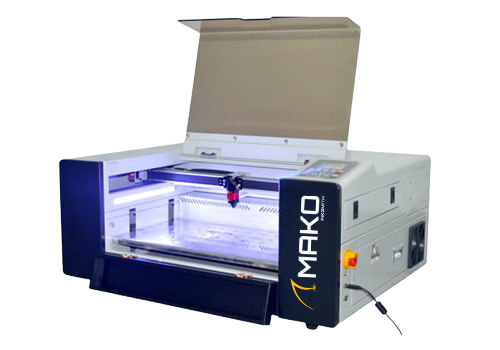

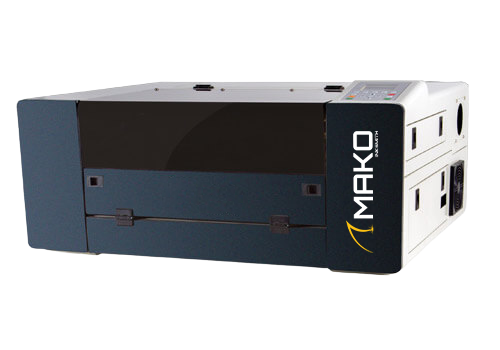

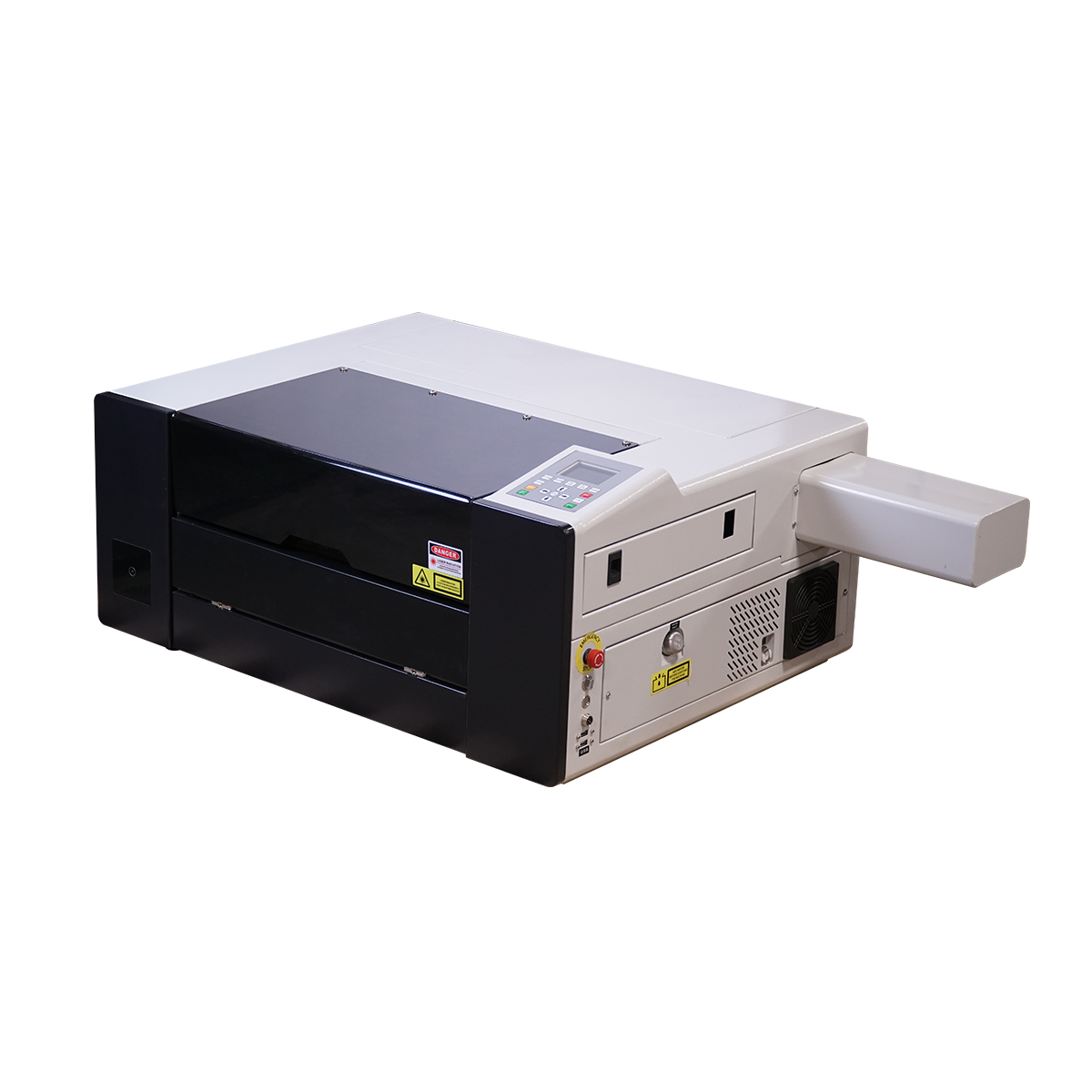

Achieve instant results on a variety of materials with the InkSmith Mako 60W CO2 Laser Cutter. Designed for education, the Mako is equipped and certified for safe operation in any makerspace or classroom.

Features

Large Workspace: Equipped with a 500mm x 300mm workspace.

Fume Extraction and Filtering: The optional XL-300 Filtration System allows for the safe and clean operation of the laser cutter indoors.

Certified for Use in Classrooms: Tested and ESA certified for use in classrooms. Our machines are equipped with advanced safety features, making laser cutting fun and enjoyable for everyone.

Technical Specifications



Model Mako60
Workspace 500mm x 300mm
Laser Power 60 Watt
Laser Type CO2 Sealed Glass Laser Tube, 10.6μm
Cool Type

Water Cooling

Engraving Speed

100-200mm/sec

Cutting Speed

50-100mm/sec

Graphical Format Supported

AI, DST, PLT, BMP, DXF, DWG, LAS, etc.

Compatible Software

Autocad, Coreldraw, Photoshop, Tajima, etc.

Drive System

High-precision 3-phase Stepper Motor

Power Supply

AC110V/220V+10%, 50HZ/60HZ

Optional Spare Parts

Honeycomb Worktable, Rotary Device, Auto-focus Device

Air Filtration Unit

Optional unit, if required + $1,999.99
Technical Specifications
  •  Model: Mako60
  • Workspace: 500mm x 300mm
  • Laser Power: 60 Watt
  • Laser Type: CO2 Sealed Glass Laser Tube, 10.6μm
  • Cool Type: Water Cooling
  • Engraving Speed: 100-200mm/sec
  • Cutting Speed: 50-100mm/sec
  • Graphical Format Supported: AI, DST, PLT, BMP, DXF, DWG, LAS, etc
  • Compatible Software: Autocad, Coreldraw, Photoshop, Tajima, etc.
  • Drive System: High-precision 3-phase Stepper Motor
  • Power Supply: AC110V/220V+10%, 50HZ/60HZ
  • Optional Spare Parts: Honeycomb Worktable, Rotary Device, Auto-focus Device
  • Air Filtration Unit: Optional unit, if required + $1,999.99

FAQs

Please read our FAQs page to find out more.

Does the Mako Laser Cutter require filtration?

An external filtration unit is not required but is highly recommended. Alternatively, the laser cutter can be vented outdoors or through an existing exhaust system.
